Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission

Regular price $13.04
Sale price
$13.04 63% OFF
Shipping calculated at checkout.
Style
Quantity

Description

Quick summary (TL;DR)

Global Swanky sells the Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission. Key details: material PCB, electronic components; dimensions 3.57cm x 1.52cm; input voltage 3.6V-6V (max 7V prohibited). Combines both master and slave modes for flexible device connectivity.

  • Material: PCB, electronic components.
  • Dimensions: 3.57cm x 1.52cm.
  • Input Voltage: 3.6V-6V (max 7V prohibited).
  • Free standard shipping to US addresses. Most orders arrive in 6 to 15 business days.
  • 30-day returns from Global Swanky with no restocking fee.

You'll find more like this in our CPU collection.

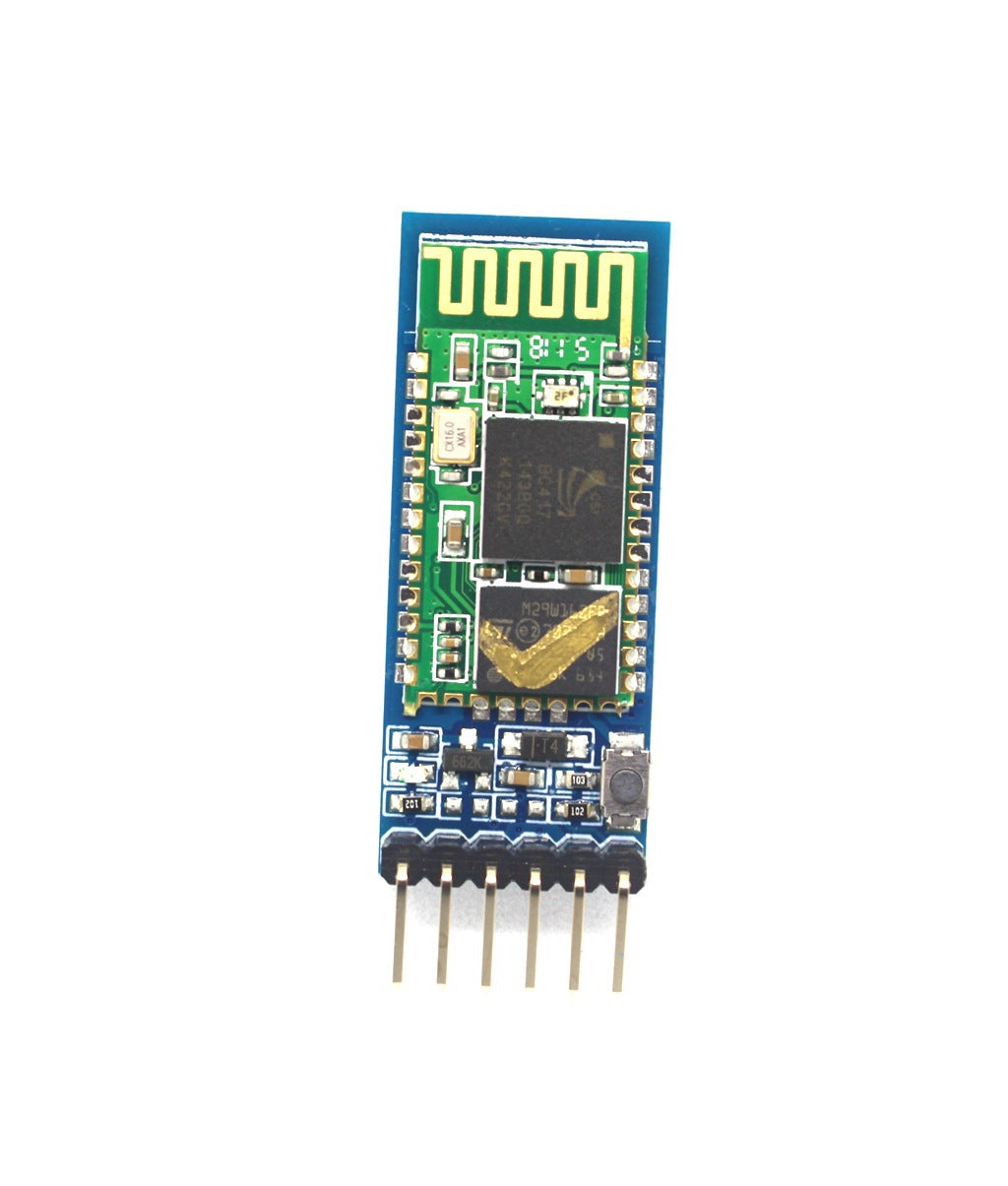

Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission, sold by Global Swanky (view 1)

Key specs

Core Module HC-05 slave module
Interface Pins VCC, GND, TXD, RXD, KEY, STATE (connection status output)
Input Voltage 3.6V-6V (max 7V prohibited)
Current Consumption ~30mA (unpaired), ~10mA (paired)
Logic Level 3.3V TTL
Communication Format 8 data bits, 1 stop bit, configurable parity
Range Up to 10 meters (Class 2 power)
Shipping weight 26 g (0.9 oz)
Sold by Global Swanky (globalswanky.com)

Features

  • Master-Slave Integrated. Combines both master and slave modes for flexible device connectivity.
  • Anti-Reverse Connection. Built-in protection against reverse polarity connection.
  • Wide Compatibility. Directly interfaces with 3.3V/5V microcontrollers (e.g., 51, AVR, PIC, ARM). Dual LED.
  • Visual status alerts (fast blink. Unconnected; slow blink: AT mode; double blink: connected). High.

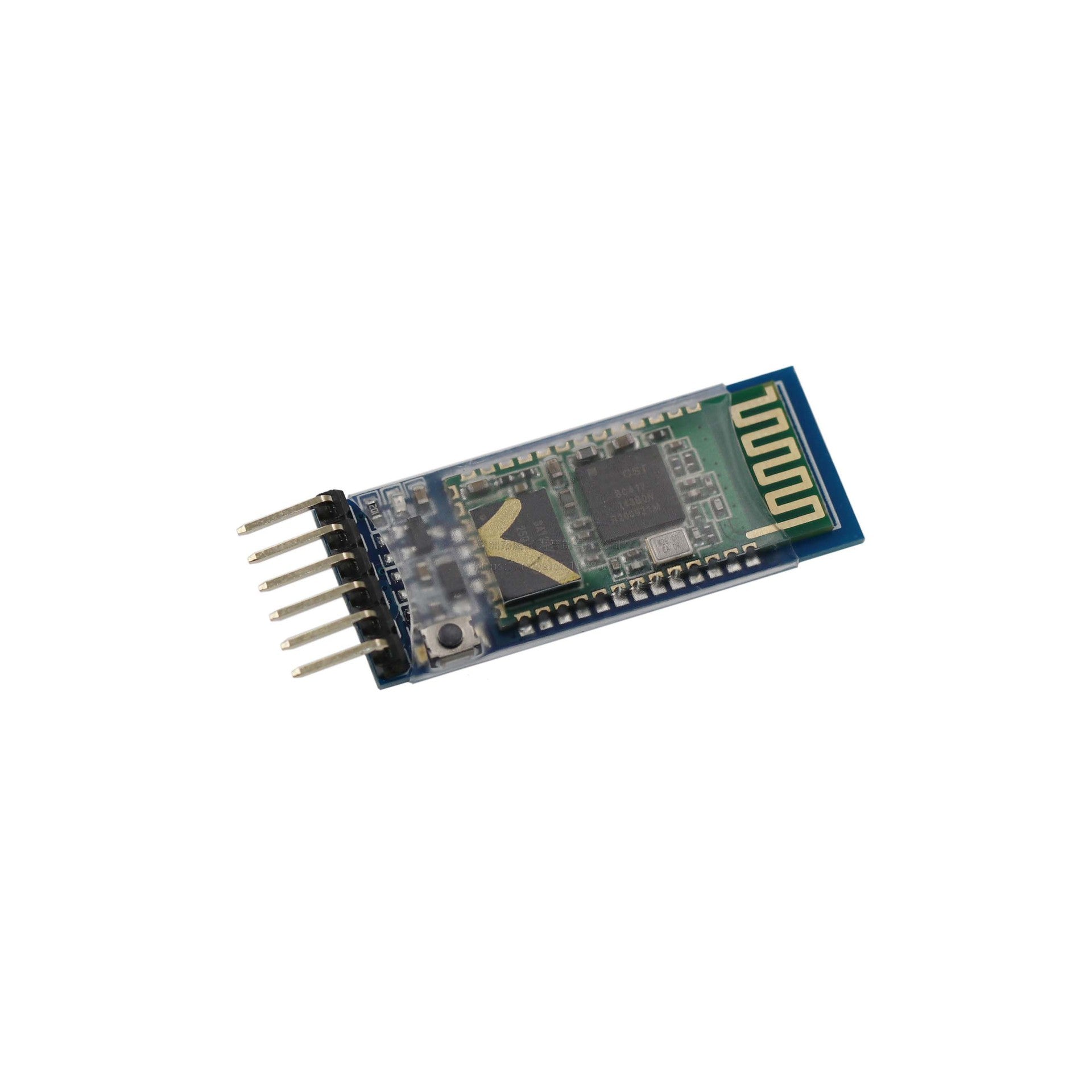

Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission, sold by Global Swanky (view 2)

Frequently asked questions

What's included with the Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission?

The package includes HC-05 Bluetooth module 1 Backplane 1.

What is the Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission made of?

The Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission is made of PCB, electronic components.

What size is the Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission?

The Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission measures 3.57cm x 1.52cm.

How is the Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission powered?

Power: 3.6V-6V (max 7V prohibited).

Where can I buy the Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission?

Global Swanky sells it online at globalswanky.com, with free standard shipping to US addresses.

How much is shipping and how long does it take?

Standard shipping to US addresses is free. Global Swanky packs orders within 1 to 2 business days, and most arrive within 6 to 15 business days of ordering. You'll get a tracking link by email once it ships. See our shipping policy for details.

Can I return it if it isn't right for me?

Yes. You can return it within 30 days of delivery, even if you just changed your mind, and there's no restocking fee. Return shipping is on you unless the item arrived damaged or defective. Read the full return and refund policy.

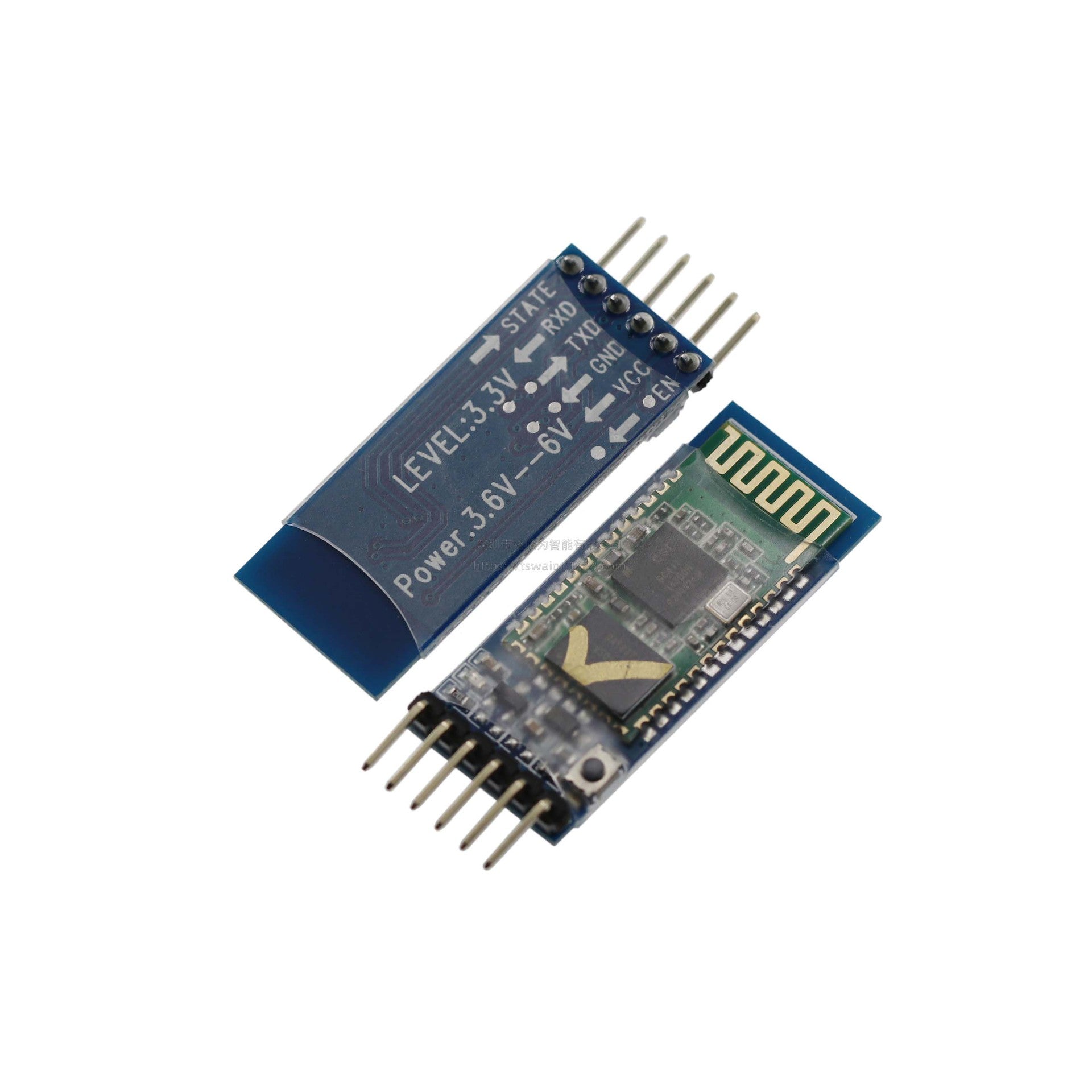

Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission, sold by Global Swanky (view 3)

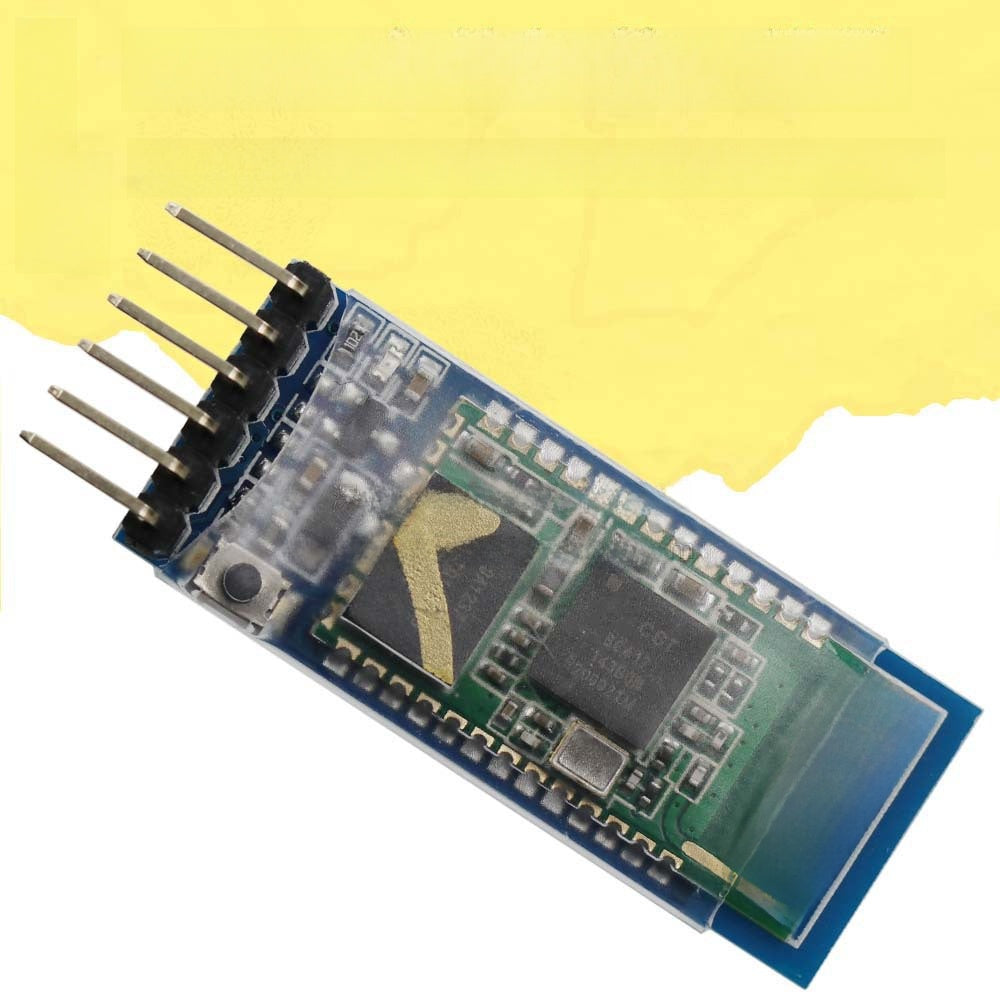

Bluetooth Module with Master-Slave Integrated Wireless Serial Transmission, sold by Global Swanky (view 4)
