HC-05 Bluetooth Serial Module with Backplate for Wireless Data Transfer

Regular price $11.43
Sale price
$11.43 56% OFF
Shipping calculated at checkout.
Style
Quantity

Description

Quick summary (TL;DR)

Global Swanky sells the HC-05 Bluetooth Serial Module with Backplate for Wireless Data Transfer. Key details: dimensions 3.57cm x 1.52cm; voltage 3.6V-6V input (3.3V LDO output, max 7V); current ~30mA (unpaired), ~10mA (paired). Combines both master and slave modes in one module for versatile Bluetooth connectivity.

  • Dimensions: 3.57cm x 1.52cm.
  • Voltage: 3.6V-6V input (3.3V LDO output, max 7V).
  • Current: ~30mA (unpaired), ~10mA (paired).
  • Free standard shipping to US addresses. Most orders arrive in 6 to 15 business days.
  • 30-day returns from Global Swanky with no restocking fee.

You'll find more like this in our Electric Window Cleaners collection.

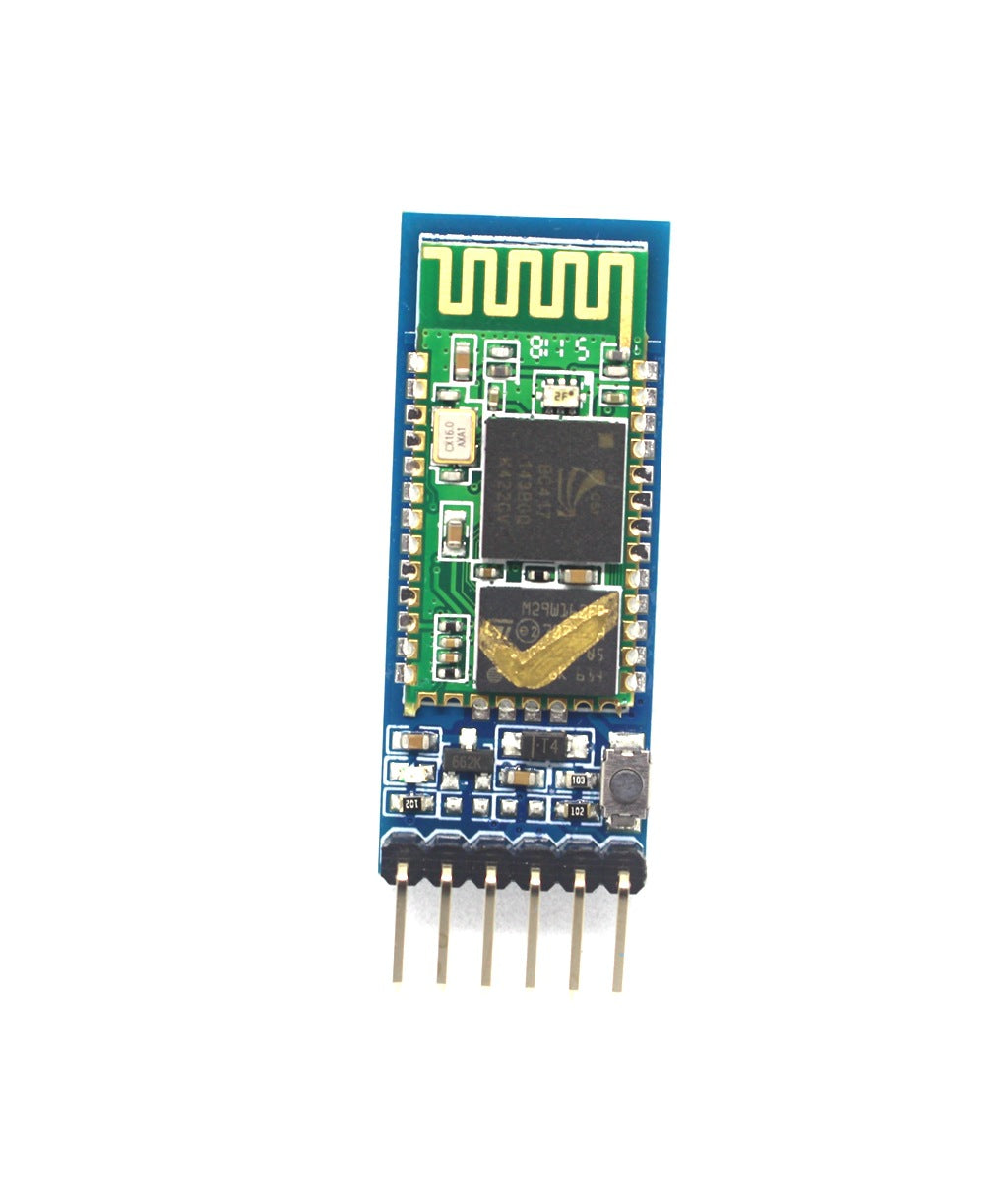

HC-05 Bluetooth Serial Module with Backplate for Wireless Data Transfer, sold by Global Swanky (view 1)

Key specs

Dimensions 3.57cm x 1.52cm
Voltage 3.6V-6V input (3.3V LDO output, max 7V)
Current ~30mA (unpaired), ~10mA (paired)
Baud Rate 4800bps-1382400bps (8-bit data, 1 stop bit)
Interface Pins VCC, GND, TXD, RXD, KEY, STATE
Indicator LED Fast blink (unconnected), slow blink (AT mode), double blink (connected)
Operating Range 10m (Class 2)
Shipping weight 23 g (0.8 oz)
Sold by Global Swanky (globalswanky.com)

Features

  • Master-Slave Integrated. Combines both master and slave modes in one module for versatile Bluetooth connectivity.
  • Wide Compatibility. Supports direct connection to microcontrollers (e.g., 51, AVR, ARM) with 3.3V/5V logic levels.
  • Long Range. Up to 10 meters effective distance in open areas (Class 2 power). AT.
  • Command Control. Configurable settings (e.g., baud rate, host/slave mode) via AT commands. Compact &.

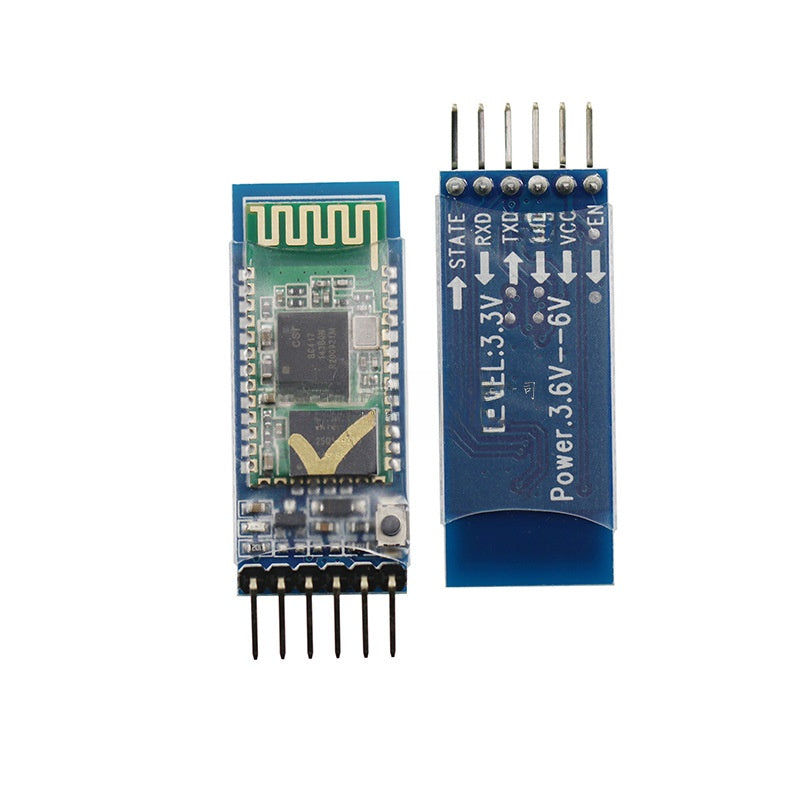

HC-05 Bluetooth Serial Module with Backplate for Wireless Data Transfer, sold by Global Swanky (view 2)

Frequently asked questions

What's included with the HC-05 Bluetooth Serial Module with Backplate for Wireless Data Transfer?

The package includes 1 x HC-05 Bluetooth module; 1 x Backplane.

What size is the HC-05 Bluetooth Serial Module with Backplate for Wireless Data Transfer?

The HC-05 Bluetooth Serial Module with Backplate for Wireless Data Transfer measures 3.57cm x 1.52cm.

How is the HC-05 Bluetooth Serial Module with Backplate for Wireless Data Transfer powered?

Power: 3.6V-6V input (3.3V LDO output, max 7V).

What options can I choose for the HC-05 Bluetooth Serial Module with Backplate for Wireless Data Transfer?

You can choose Compatible board and Original.

Where can I buy the HC-05 Bluetooth Serial Module with Backplate for Wireless Data Transfer?

Global Swanky sells it online at globalswanky.com, with free standard shipping to US addresses.

How much is shipping and how long does it take?

Standard shipping to US addresses is free. Global Swanky packs orders within 1 to 2 business days, and most arrive within 6 to 15 business days of ordering. You'll get a tracking link by email once it ships. See our shipping policy for details.

Can I return it if it isn't right for me?

Yes. You can return it within 30 days of delivery, even if you just changed your mind, and there's no restocking fee. Return shipping is on you unless the item arrived damaged or defective. Read the full return and refund policy.

HC-05 Bluetooth Serial Module with Backplate for Wireless Data Transfer, sold by Global Swanky (view 3)

HC-05 Bluetooth Serial Module with Backplate for Wireless Data Transfer, sold by Global Swanky (view 4)
