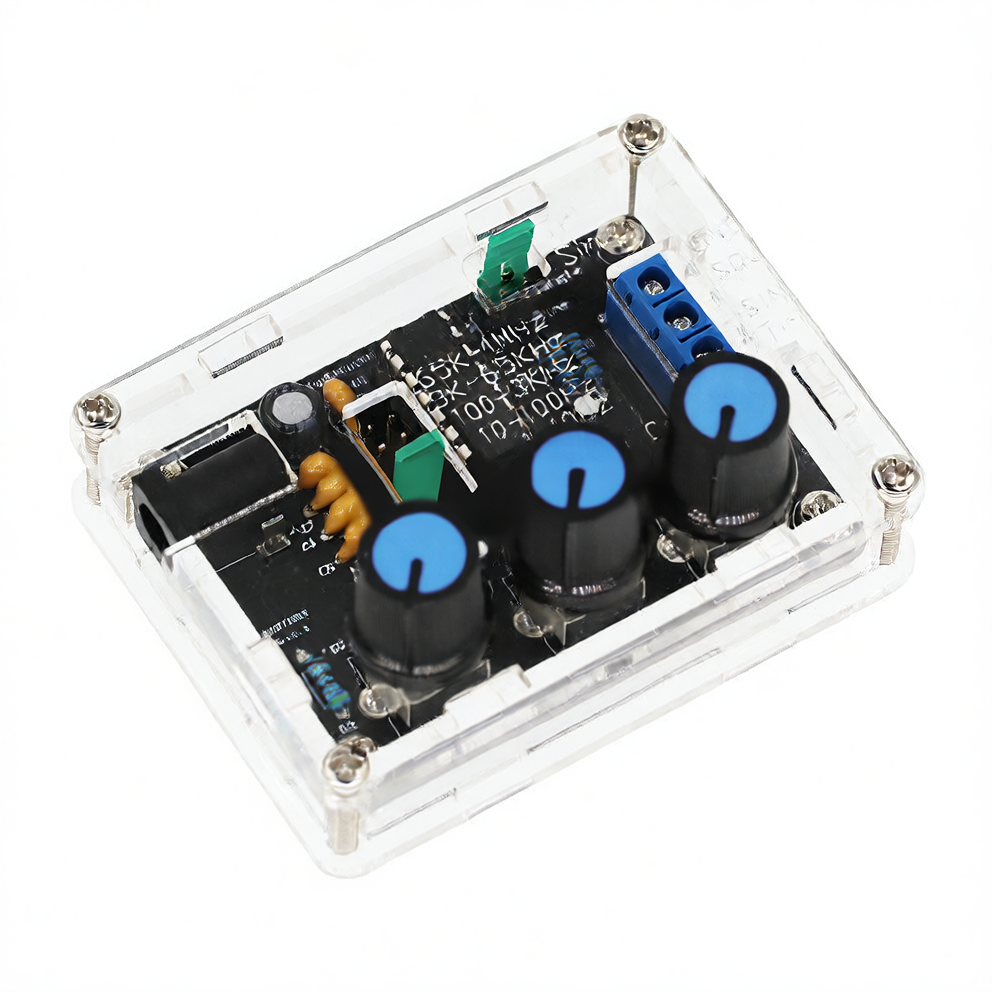

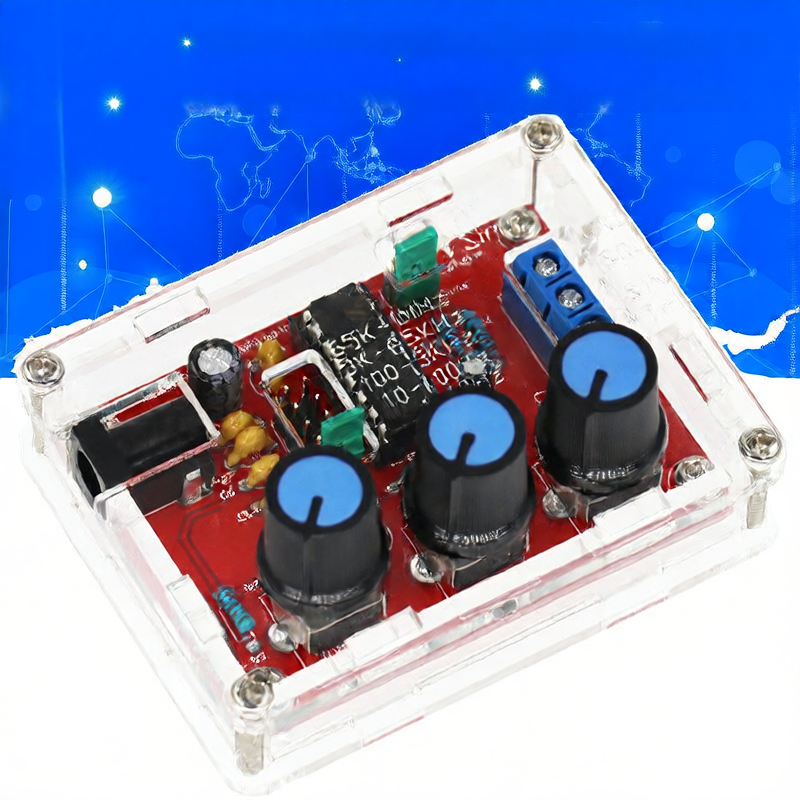

Bring home dependable everyday performance with the high precision signal Generator, a practical product from the DIY Accessories category chosen for home users, office users, travellers, and gift shoppers. Its precision signal generation, power supply compatibility, and adjustable parameters help support practical performance, simple operation, and long-lasting everyday value.

Key Features & Benefits

• Precision Signal Generation – Generates sine, triangle, and square waveforms with 1Hz-1MHz frequency range and five-digit resolution for accurate signal output. Wide
• Power Supply Compatibility – Supports 9-12V DC external power or 9V battery, offering flexible operation options
• Adjustable Parameters – Features coarse and fine frequency tuning alongside amplitude adjustment for customizable waveform control. Simplified DIY
• Assembly – All through-hole components with minimal part count, ensuring straightforward welding and installation
• Low Distortion Output – Maintains less than 1% distortion at 1kHz for sine waves, ensuring signal clarity

Specifications

• Waveforms – Sine, Triangle
• Square Frequency Range – 1Hz - 1MHz
• Input Voltage – 9-12V DC
• Output Impedance – 600 Ohm ±10%
• Sine Wave Amplitude – 0-3V (at 9V input)
• Sine Wave Distortion – <1% (at 1kHz)
• Square Wave Amplitude – 8V no-load (at 9V input) Square
• Wave Rise/Fall Time – <50ns/<30ns (at 1kHz)
• Triangle Wave Linearity – <1% (up to 100kHz)

Feature Highlights

• Easy to Use – Straightforward setup helps you start using it right away
• Versatile Option – Works well across a range of everyday situations and settings
• Everyday Use – Suitable for home, work, travel, and regular daily routines
• Space Friendly – Compact proportions fit easily into everyday storage and carry bags
• Reliable Finish – Neat detailing helps the product look good through regular use
• Great Gift Choice – A practical pick for birthdays, holidays, and special occasions

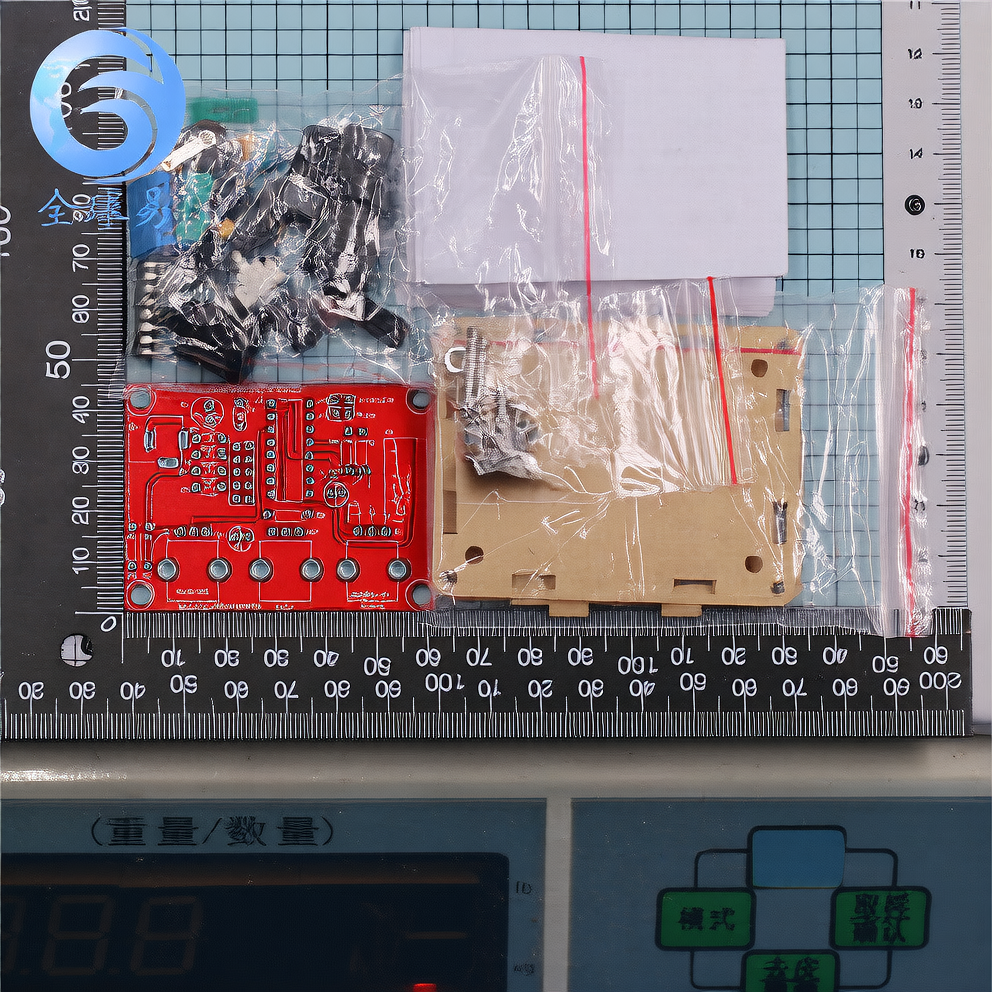

What's in the Box

• XR2206 PCB1 XR2206 IC1 Resistors (1K, 5.1K, 330 ohm)multiple Potentiometers (50K, 100K)multiple Capacitors (100UF, 10UF, 104, 105, 473, 222, 101)multiple DC Power Jack1 Jumper Caps (2PIN, 25P)multiple Signal Terminal1 Enclosure1

Bring practical everyday quality home with the high precision signal Generator from Global Swanky, a practical product from the DIY Accessories category made to support precision signal generation, power supply compatibility, adjustable parameters, and comfortable everyday use.
